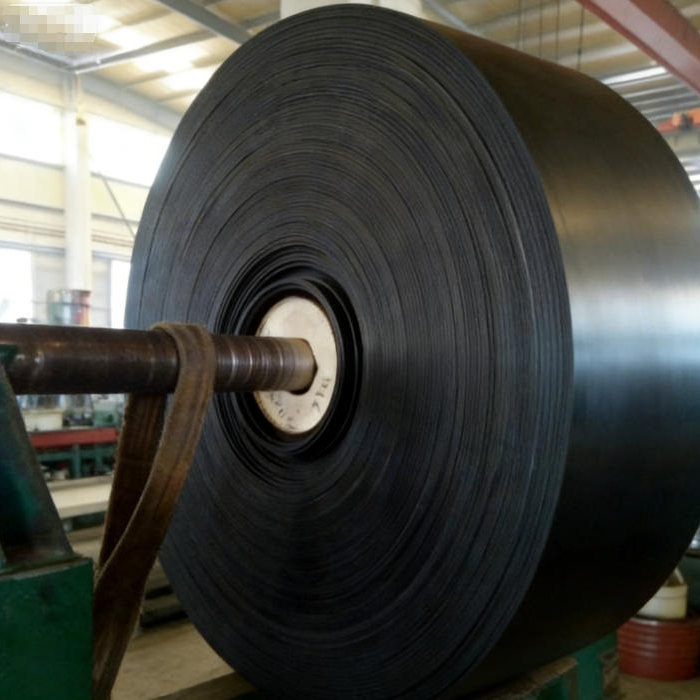

High tensile steel cord conveyor belts are engineered for demanding material handling operations where strength, durability, and long-distance conveying performance are essential. Designed with steel cords as the reinforcement layer, these heavy-duty conveyor belts provide excellent tensile strength, low elongation, superior impact resistance, and reliable operation under extreme loads. In heavy industries such as mining, ports, cement, steel, power generation, and bulk materials processing, steel cord conveyor belts are widely recognized as one of the most dependable conveyor solutions for high-capacity transportation.
As industrial production continues to scale, the need for conveyor systems that can move large volumes of material efficiently has increased significantly. High tensile steel cord conveyor belts are often selected for applications requiring long conveyor distances, high belt speeds, steep inclines, abrasive material handling, and continuous operation in harsh environments. Their structure allows them to carry heavy payloads while maintaining stable tracking and reduced belt stretch over time. For facilities that depend on uninterrupted flow and minimal downtime, steel cord belts offer a strong combination of performance and service life.
This page provides a complete overview of high tensile steel cord conveyor belts for heavy industries, including their definition, working structure, core advantages, common specifications, application areas, technical characteristics, and selection considerations. The content is written for SEO-friendly use in blog posts, industry pages, category pages, and product information sections.
A high tensile steel cord conveyor belt is a type of conveyor belt reinforced with parallel steel cords embedded in the belt body. These cords serve as the load-bearing framework, providing exceptional tensile strength and dimensional stability. The carcass is typically protected by top and bottom rubber covers that resist wear, heat, impact, oil, abrasion, and other operational stresses depending on the intended application.
Unlike textile conveyor belts, which rely on fabric layers such as polyester, nylon, or cotton-based reinforcement, steel cord conveyor belts are designed for extremely high tension and long-distance conveying. This makes them especially suitable for heavy industry environments where belts must carry large tonnage over long spans with minimal stretch and reliable alignment.
The term “high tensile” refers to the belt’s ability to withstand large pulling forces without structural failure or excessive elongation. In practical terms, this means the belt can perform under high-load conditions while maintaining stable operation and efficient power transmission across the conveyor system.
Heavy industries demand conveyor systems that can move raw materials and processed goods consistently, safely, and at scale. Steel cord conveyor belts are preferred because they offer a set of performance characteristics that are difficult to achieve with standard conveyor belt constructions.
In industries where conveyor downtime can cause significant production losses, the durability and consistent performance of steel cord belts contribute directly to operational efficiency and cost control.
Understanding the structure of a steel cord conveyor belt helps explain why it performs so well in heavy-duty applications. The belt is typically composed of three main parts: the top cover, the steel cord reinforcement layer, and the bottom cover.
| Component | Function | Typical Materials / Features |
|---|---|---|
| Top Cover | Protects the belt surface from abrasion, impact, heat, and material damage | Wear-resistant rubber, heat-resistant rubber, oil-resistant rubber, flame-resistant compounds |
| Steel Cord Carcass | Provides the belt’s tensile strength and load-carrying capability | High-strength galvanized or bright steel cords arranged longitudinally |
| Bottom Cover | Protects the underside of the belt and supports pulley contact | Durable rubber compound designed for flexing and abrasion resistance |
The steel cords are precisely spaced and bonded into the belt matrix, ensuring balanced strength and uniform stress distribution. This construction reduces the likelihood of belt failure under heavy loads and supports smooth operation over long conveyor routes.
High tensile steel cord conveyor belts provide several key advantages that make them ideal for heavy industries. These benefits are not limited to mechanical performance; they also contribute to improved productivity, reduced maintenance, and lower lifecycle costs.
The most important advantage of a steel cord belt is its ability to withstand very high tension. This is crucial for conveyors with long center distances, high loads, and large inclines. The steel reinforcement gives the belt the power to handle demanding material transport without stretching excessively or losing structural integrity.
Steel cord conveyor belts exhibit very low elongation compared to textile belts. This means the belt maintains its original length and tension more effectively over time. As a result, conveyor systems require less frequent re-tensioning and can achieve more stable tracking and improved operational reliability.
Heavy industries often handle sharp, dense, or irregularly shaped materials. Steel cord belts are built to resist impact loading and reduce the risk of damage from dropped material, helping protect the conveyor line in rugged environments.
Because of their strong internal reinforcement and robust cover compounds, steel cord belts are capable of long-term service in harsh operating conditions. Their durability often translates into fewer belt replacements and lower downtime.
For long overland conveyors, the high tensile steel cord structure helps maintain strength across extended spans. This allows industries to design efficient conveyor routes with fewer transfer stations, reducing energy loss and material degradation.
Steel cord belts can be designed to form stable troughed profiles, which improves material containment and helps increase carrying capacity. This is especially useful in bulk handling applications where spillage reduction is essential.
The low stretch characteristics of steel cord belts contribute to steady belt tracking and consistent running behavior. This is valuable in high-speed and high-capacity systems where belt stability directly affects productivity.
Steel cord conveyor belts are used across a wide range of industrial sectors. Their versatility and strength make them suitable for transporting raw materials, intermediate products, and finished goods in some of the world’s toughest operating conditions.
| Industry | Typical Materials Handled | Why Steel Cord Belts Are Used |
|---|---|---|
| Mining | Ore, coal, overburden, aggregates, mineral concentrates | High tension, long-distance transport, impact and abrasion resistance |
| Cement | Limestone, clinker, gypsum, raw meal, finished cement | Continuous operation, heavy loads, abrasion resistance |
| Steel Industry | Iron ore, coke, sinter, scrap metal, pellets | Strength, heat resistance options, durability in harsh environments |
| Ports and Terminals | Bulk cargo, coal, grain, minerals, fertilizers | High throughput, long conveyors, reliable handling at scale |
| Power Generation | Coal, biomass, ash, limestone | Continuous feeding, abrasion resistance, stable conveying performance |
| Quarries | Stone, gravel, sand, crushed rock | Impact resistance, rugged performance, long service life |
| Bulk Material Processing | Dry bulk solids, granules, pellets, powders | High capacity, low maintenance, dependable transfer efficiency |
Steel cord conveyor belts are manufactured in a wide range of specifications to suit different applications. The correct specification depends on conveyor length, load type, pulley design, operating environment, and expected service conditions.
| Specification Item | Common Range / Options | Description |
|---|---|---|
| Belt Width | From 600 mm to 2400 mm or more | Determines conveying capacity and system compatibility |
| Breaking Strength | ST630 to ST6300 and above | Represents the tensile rating of the belt reinforcement |
| Cover Thickness | Top: 4 mm to 20 mm or more; Bottom: 2 mm to 8 mm or more | Selected based on abrasion, impact, heat, and wear demands |
| Belt Construction | Single-ply steel cord structure with top and bottom rubber covers | Engineered for strength and long service life |
| Steel Cord Diameter | Varies by design and tensile class | Affects belt strength and flexibility |
| Cover Compound Type | General-purpose, abrasion-resistant, heat-resistant, oil-resistant, flame-resistant | Chosen according to working environment and material properties |
| Working Temperature | Typically depends on compound selection | Standard and special belts are available for different temperature conditions |
These specifications can be customized according to project requirements. In many heavy industrial systems, belt design is closely matched to pulley diameter, conveyor length, loading conditions, and material characteristics in order to maximize performance and belt life.
The cover compound is a critical factor in determining the belt’s suitability for specific industrial environments. While the steel cords provide strength, the rubber cover protects the belt from external damage and chemical or thermal stress.
| Cover Type | Primary Benefit | Typical Application |
|---|---|---|
| General Purpose | Balanced performance for standard conveying conditions | General bulk materials handling |
| Abrasion Resistant | Improved resistance to wear from rough or sharp materials | Mining, quarrying, cement, aggregates |
| Heat Resistant | Maintains performance under elevated temperatures | Clinker, sinter, hot ore, foundry materials |
| Oil Resistant | Resists swelling or degradation caused by oils and greases | Oil-exposed industrial processes |
| Flame Resistant | Designed to reduce fire risk in sensitive operations | Underground mining, safety-critical environments |
| Cold Resistant | Remains flexible and durable in low temperatures | Cold climate installations, outdoor conveyors |
When evaluating high tensile steel cord conveyor belts, industrial buyers often focus on a set of measurable characteristics that influence long-term performance. These characteristics help determine whether a belt will operate reliably under the expected load profile and environmental conditions.
These performance factors are commonly tested and specified during belt selection. Choosing a belt with the right balance of tensile strength and cover compound performance helps reduce failures, improve uptime, and extend replacement intervals.
Both steel cord and textile conveyor belts are widely used in industry, but they serve different operational needs. The choice depends on load requirements, conveyor length, working environment, and budget priorities.
| Feature | Steel Cord Conveyor Belt | Textile Conveyor Belt |
|---|---|---|
| Tensile Strength | Very high | Moderate to high |
| Elongation | Very low | Higher than steel cord belts |
| Long-Distance Conveying | Excellent | Suitable for shorter to medium distances |
| Impact Resistance | High | Varies by fabric construction |
| Service Life | Long in heavy-duty use | Good in general-duty applications |
| Cost | Higher initial investment | Lower initial investment |
| Best Use | Heavy industries, long conveyors, high tension systems | General materials handling, moderate duty systems |
For heavy industries, steel cord belts are often the preferred option when reliability, long service life, and structural strength are more important than initial purchase cost. Although textile belts can be effective in many applications, they may not provide the same level of performance for high-tension and long-distance conveying.
Selecting the right steel cord conveyor belt requires careful analysis of the operating environment and material profile. A belt that is properly matched to the system will generally deliver better performance and lower maintenance needs.
High tensile steel cord conveyor belts are especially valuable in systems where the conveyor must sustain strong pulling forces and continuous material transfer. Typical high-demand applications include:
In these environments, the belt must continuously perform under stress while resisting wear, shock, and belt stretch. Steel cord technology is particularly suitable when system uptime and load capacity are critical production factors.
While high tensile steel cord conveyor belts are designed for durability, proper maintenance remains essential for maximum service life. Maintenance programs should focus on belt alignment, pulley condition, loading consistency, cover wear, and joint integrity.
Common maintenance practices include routine inspection for cuts, tears, cover wear, edge damage, splice condition, and abnormal tracking. Cleaning systems should also be monitored to prevent material build-up, which can cause unnecessary wear or operational inefficiency.
When a steel cord belt is correctly selected, properly installed, and maintained under suitable operating conditions, it can provide reliable long-term service in some of the most demanding heavy industrial applications.
Although steel cord conveyor belts usually involve higher initial investment than standard conveyor belts, they often deliver strong long-term value. Their low elongation and long service life can reduce the need for frequent adjustments, replacements, and production stoppages. This can translate into lower total cost of ownership over the lifecycle of the conveyor system.
Additional productivity benefits include improved material flow, fewer breakdowns, reduced downtime, and more stable conveying performance. For large industrial facilities, these advantages can have a direct impact on operational efficiency and output consistency.
High tensile steel cord conveyor belts for heavy industries are advanced conveying solutions built for strength, stability, and durability. With steel cord reinforcement, low elongation, high load-carrying capacity, and strong resistance to abrasion and impact, these belts are ideal for mining, cement, steel, ports, quarries, power plants, and other demanding bulk handling environments.
Their key value lies in dependable performance under extreme conditions. Whether the need is long-distance conveying, heavy payload transport, or continuous industrial operation, steel cord conveyor belts provide the robust construction and technical reliability required by modern heavy industry.
For businesses and engineers searching for a durable conveyor solution, high tensile steel cord conveyor belts remain one of the most trusted options in industrial material handling. Their combination of tensile strength, long service life, and low maintenance demand makes them a practical choice for high-performance conveyor systems.
The following search terms are commonly associated with high tensile steel cord conveyor belts and may help support SEO relevance in content planning:
These keywords are naturally aligned with the technical and commercial intent of users researching conveyor solutions for heavy industrial applications. Including them within structured, informative content can improve relevance for search engines while keeping the page useful to human readers.
```
